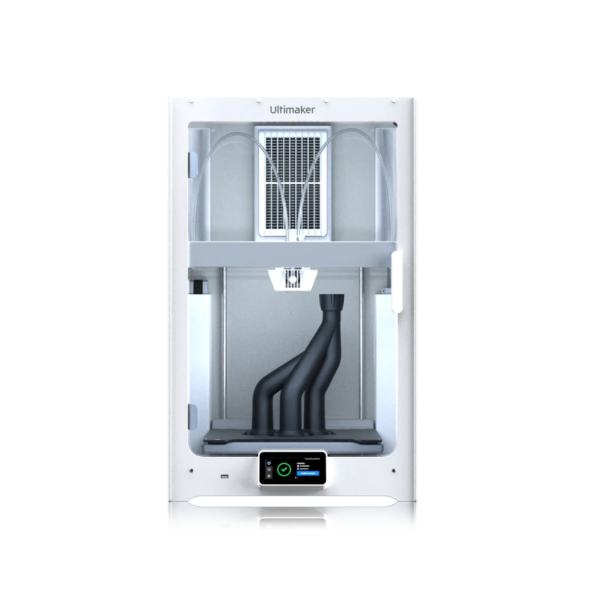

IMPRESSORA 3D ULTIMAKER S7

ESPECIFICAÇÃO DO PRODUTO

Build Volume

330 x 240 x 300 mm

(13 x 9.4 x 11.8 inches)

Assembled dimensions

495 x 585 x 800 mm

(19.5 x 23 x 31.5 inches)

Print technology

Fused filament fabrication (FFF)

Compatible filament diameter

2.85 mm

Weight

29.1 kg (64.2 lbs)

Maximum power output

500 W

Layer resolution
0.25 mm nozzle: 150 – 60 micron
0.4 mm nozzle: 200 – 20 micron
0.6 mm nozzle: 300 – 20 micron
0.8 mm nozzle: 600 – 20 micron

XYZ resolution
6.9, 6.9, 2.5 micron

Feeder type
Dual-geared feeder, reinforced for composite materials

Display
4.7-inch (1 1.9 cm) color Touchscreen

Print core replacement
Swappable print cores

Print head
Dual extrusion print head with an auto-nozzle lifting
system, swappable print cores, and flood detection.

Nozzle diameters]
0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm

Filter technology
Replaceable EPA filter

Air extraction rate
1 – 50 m³/h (35 m³/h nominal rate for most materials at 23 °C)

Nozzle temperature
180 – 280 °C

Nozzle heat-up time
< 2 minutes

Operating sound
< 51 dBA

Build plate leveling
Advanced active leveling with more accurate inductive sensors

Build plate
PEI-coated flexible steel build plate

Build plate heat-up time
< 5 minutes (from 20 to 60 °C)

Operating ambient temperature
15 – 32 °C (59 – 90 °F)

Non-operating temperature
0 – 32 °C (32 – 90 °F)

Garantia: 12 meses

Marca: ULTIMAKER S7

CÓDIGO: 1.261
AUTORIZA ADESÃO DE 50% POR ÓRGÃO = ATÉ 15 UNIDADES POR ADESÃO
